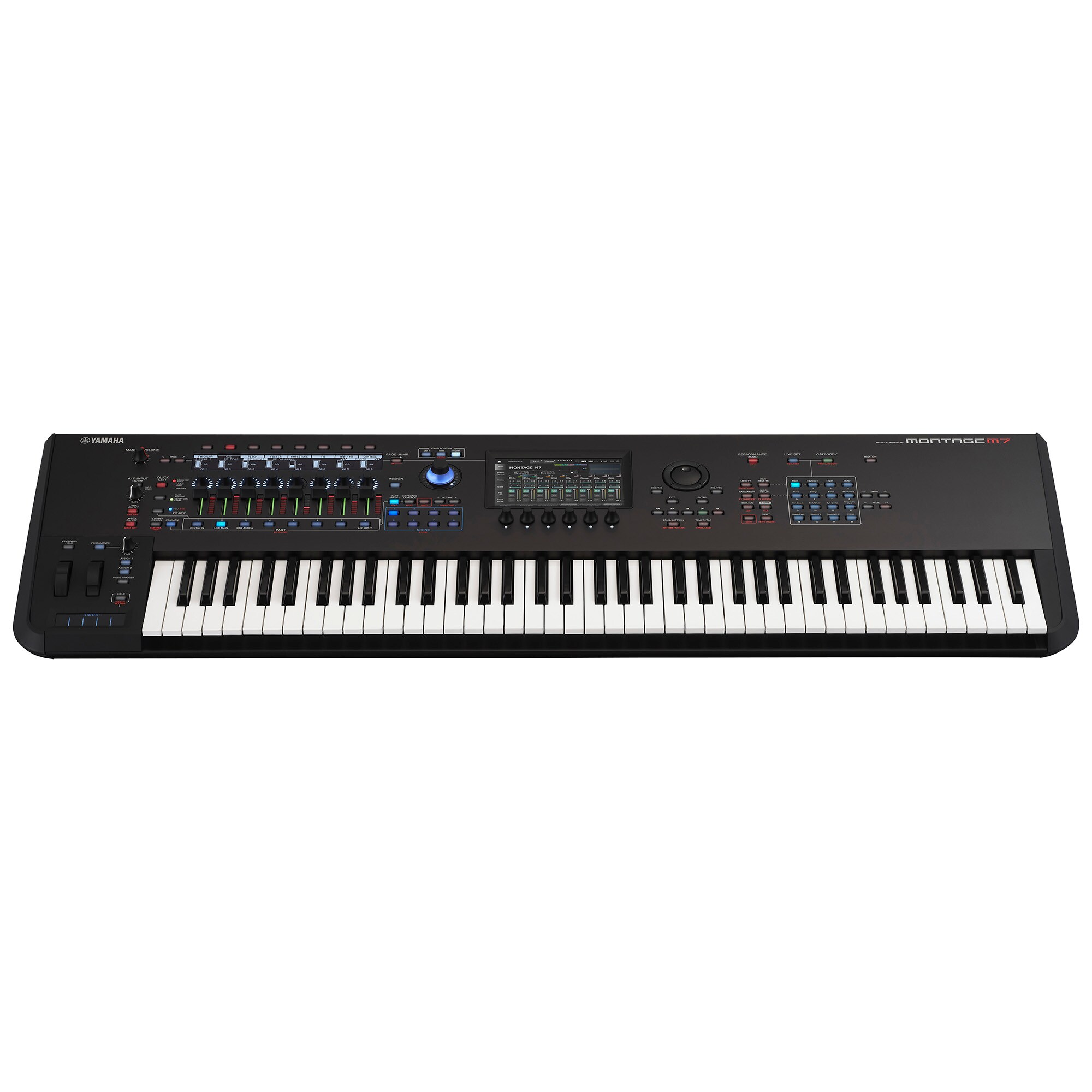

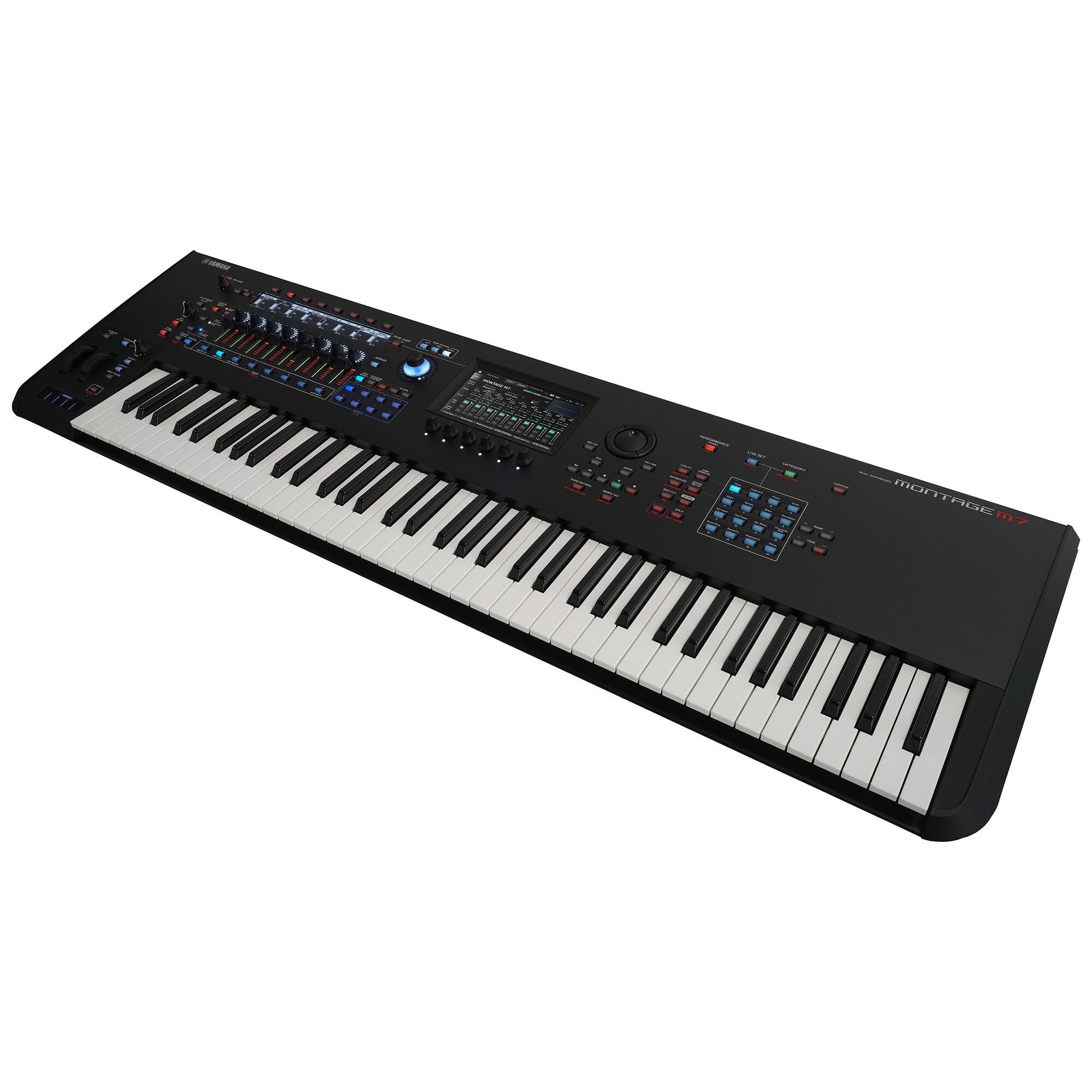

Product is not availableMONTAGE M7, the next-generation flagship synthesizer from Yamaha.
| Width | 1244 mm |
| Height | 131 mm |
| Depth | 396 mm |
| Weight | 17.6kg |
| Number of Keys | 76 |
| Type | FSX Keyboard |
Initial Touch | + |
| Aftertouch | + |
| Tone Generator | Motion Control Synthesis Engine AMW2: 128 Elements (max.), FM-X: 8 Operators, 88 Algorithms, AN-X: 3 Oscillators, 1 Noise |
| Maximum Polyphony | AWM2: 256 (max.; stereo/mono waveforms) FM-X: 128 (max.) |
| Multi Timbral Capacity | 16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part |
| Wave | Preset: 10.7 GB (when converted to 16-bit linear format), User: 3.7 GB |
| Performance | 3427 |
| Filter | 18 types |
| Effects | Reverb x 13 types, Variation x 88 types, Insertion A x 88 types*2, Insertion B x 89 types*3 |
Master Effect x 26 types *2A/D part insertion x 83 types,Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands) | |
| Controllers | Master Volume, AD Input Gain knob, Pitch Bend wheel, Modulation wheel, Ribbon Controller, Control Sliders x 8, Knobs x 8, Super Knob, Data dial |
| Display | 7" TFT Color Wide VGA LCD touch screen |
| Connectors | [USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT]/[THRU], FOOT CONTROLLER [1]/[2], |
| FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT (BALANCED) [L/MONO]/[R] , ASSIGNABLE OUTPUT (BALANCED) [L]/[R] , [PHONES], A/D INPUT [L/MONO]/[R] | |
| Power Consumption | 36 W |
| Accessories | AC Power cord, Owner’s Manual, Cubase AI Download Information |
| Live Sets | Preset: 256 and more, User: 2,048 |
Recorder Tracks | 16 Sequence tracks, Tempo track, Scene track |
| Recording type | Real time replace, Real time overdub, Real time punch in/out |
| Note Capacity | 1 Song/Pattern: Approx. 130,000 notes, Store area: Approx. 520,000 notes (Pattern); approx. 520,000 notes (Song) |
| Note Resolution | 480 ppq (parts per quarter note) |
| Tempo (BPM) | 5 – 300 |
| Arpeggio | Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types |
| Sequence formats | MONTAGE original format, SMF formats 0, 1 |
| Patterns | 128 patterns |
| Pattern tracks | 16 Sequence tracks |
| Pattern Recording type | Real time replace, Real time overdub |
| Songs | 128 songs |
| Song tracks | 16 Sequence tracks, Tempo track, Scene track |
| Song recording type | Real time replace, Real time overdub, Real time punch in/out |
| USB audio interface | [Sampling Frequency = 44.1kHz] Input: 6 channels (3 stereo channels),Output: |
| 32 channels (16 stereo channels) [Sampling Frequency = 44.1kHz - 192kHz] Input: 6 channels (3 stereo channels),Output: 8 channels (4 stereo channels) |
